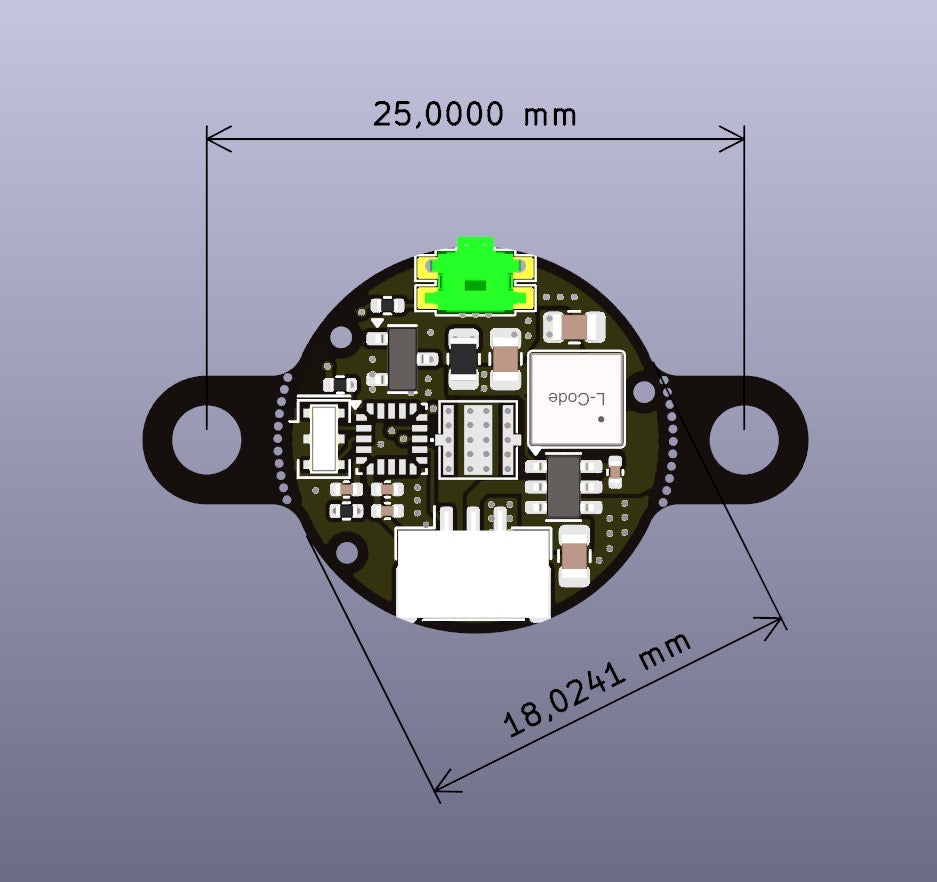

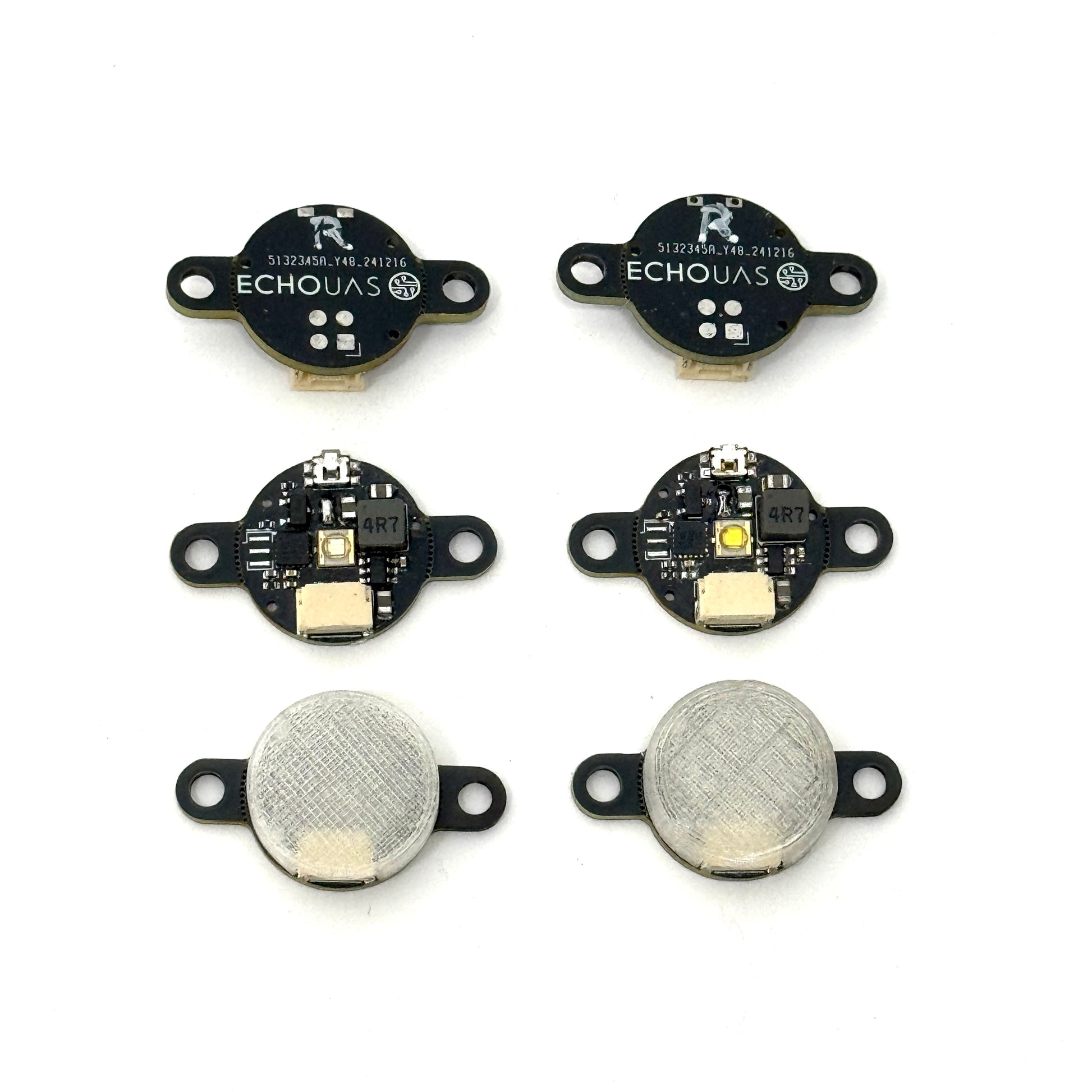

EchoUAS Drone LED Strobe

Mode:

Description:

Off

LED is in idle off mode. No pattern is being produced.

Static

LED is on indefinitely at reduced brightness.

Strobe

Quick flashes with a longer break between each set of 3 flashes.

Blink

Longer flashes with an equal length of time off between flashes. LED is at reduced brightness to avoid overheating.

Rotating Beacon

Gradual increase and then decrease in brightness with a quick flash at the peak of the changing brightness. There is a break in between each pulse where the LED is off.

Heartbeat

Gradual increase and then decrease in brightness. There is a break in between where the LED is off. This is similar to the Rotating Beacon pattern except there is no flash at the peak of the changing brightness.
